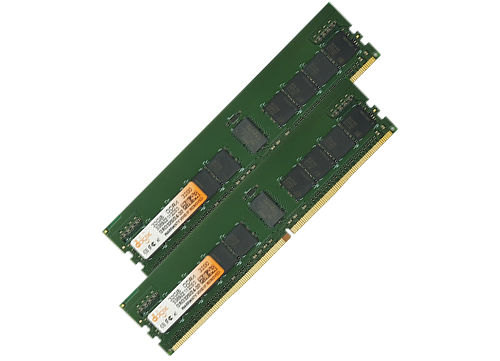

Dolgix Registered DDR4 SDRAM DIMMs (Registered Double Data Rate Synchronous DRAM Dual In-Line Memory Modules) are low power, high-speed operation memory modules that use DDR4 SDRAM devices. These DDR4 Registered DIMMs are intended for use as main memory when installed in systems such as servers and workstations.
Features
- Power Supply: VDD=1.2V (1.14V to 1.26V)
- VDDQ = 1.2V (1.14V to 1.26V)
- VPP = 2.5V (2.375V to 2.75V)
- VDDSPD=2.25V to 2.75V
- Supports ECC error detection and correction
- Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
- Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
- Selectable BC4 or BL8 on-the-fly (OTF)
- Data transfer rates: PC4-25600
- Bi-Directional Differential Data Strobe
- Gold edge contacts
- Halogen-free
- Fly-by topology
- Terminated control, command, and address bus
- Operating temperature - Commercial (0°C ≤ TOPER ≤ 95°C)
